HME Introduction
HME（Hot-Melt Extrusion technique，HME）is also named as Melt Extrusion technique,it is a new preparations technique
Application Area
New product development and formula optimization
Quality test and control.

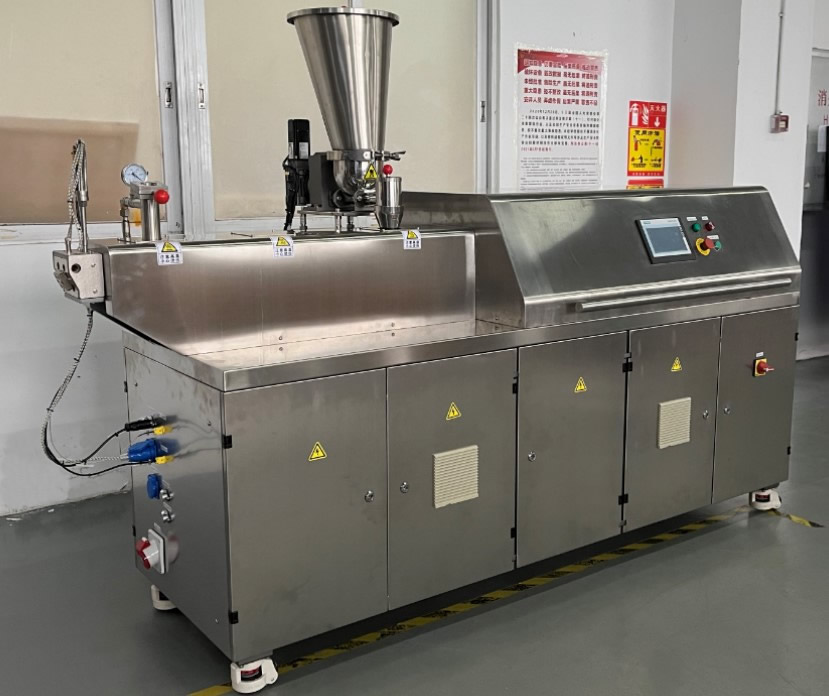

HTGD-40 is a twin screw hot melt extruder especially popular in Pharmaceutical testing area.
|
Name |
Description |
specification |
|
Specification of the machine
|
Material Applicable |
PP/PE/PVP/compounding materials etc |
|
Screw Diameter |
40.6mm |
|
|
Screw L/D ratio |
40：1 |
|
|
Motor power |
45kW |
|
|
Output |
80-120kg/h（It will be different according to material formula） |
|
|
Max.rotation speed |
600rpm |
|
|
Max. temperature |
350℃ |
|
|
Temperature control accuracy |
±1℃ |
|
|
Working voltage |
380 V±10%, 3 phases, 50 Hz |
|
|
Total Power |
About 65kW |
|
|
Control Method |
Siemens PLC control |
|
|
|
Material of contact surface | Stainless steel |
