Lab multi layer co-extrusion line

I want to make an inquiry

Product Description

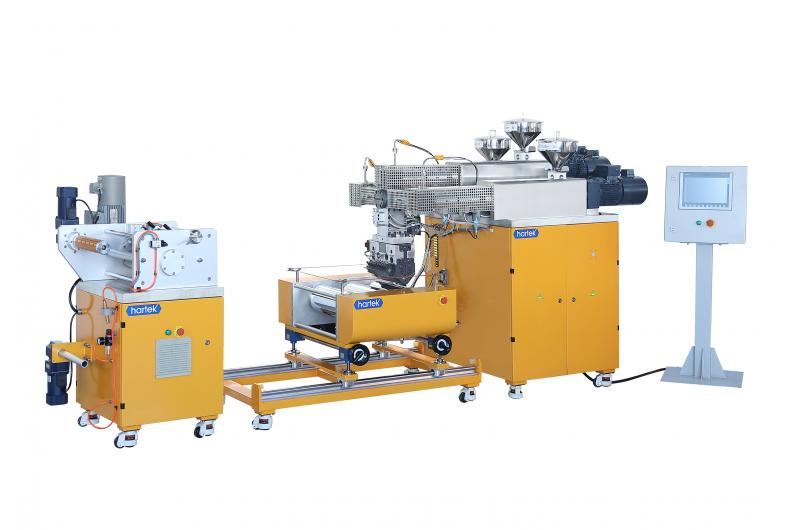

The Lab multi layer casting film co-extrusion line is composed of driving system, extrusion system, die head, roll system, traction system, winding system and electrical control system.

It is applied to the conventional plastic extrusion&molding. It is an ideal tool for research institute cause of it’s Miniaturization, intelligentize and high precision.

Main Function & Features

1、Adopting international brand control motor for the extruder to make the plasticization stable and constant.

2、Using brand melt pressure and temperature sensor to ensure high accurate data.

3、 Adopting Simens PLC control systems and friendly HMI which are highly intelligent and easy to operate

4、Formula Storage function.

5、Emergency stops and safety protection devices to protect the safety of the operator.

The test video please click: Lab  multi layer co-extrusion line

Technical Data

Material Applicable: PP,PE,PET,compounding materials etc
Screw Diameter: 25mm
Screw L/D ratio: 28:01:00
Motor power: 4kW
Max. Output: Each extruder 0.5-5kg/h,total 1.5-15kg/h for 3 sets
Max.rotation speed/set: 120rpm
Film width: 20mm- 100mm
Film thickness: 0.1-1mm
Max. temperature: 350℃
Temperature control accuracy: ±1℃
Working voltage:  380 V±10%, 3 phases, 50 Hz
Control Method: Siemens PLC control
