Product Description

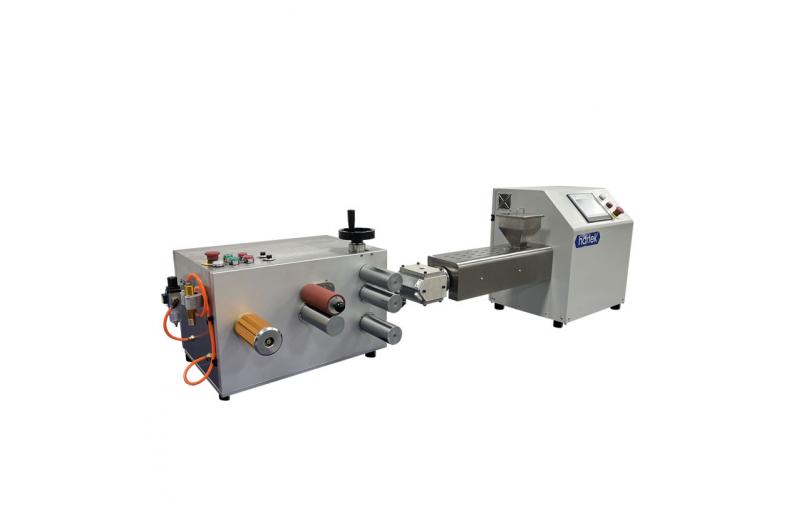

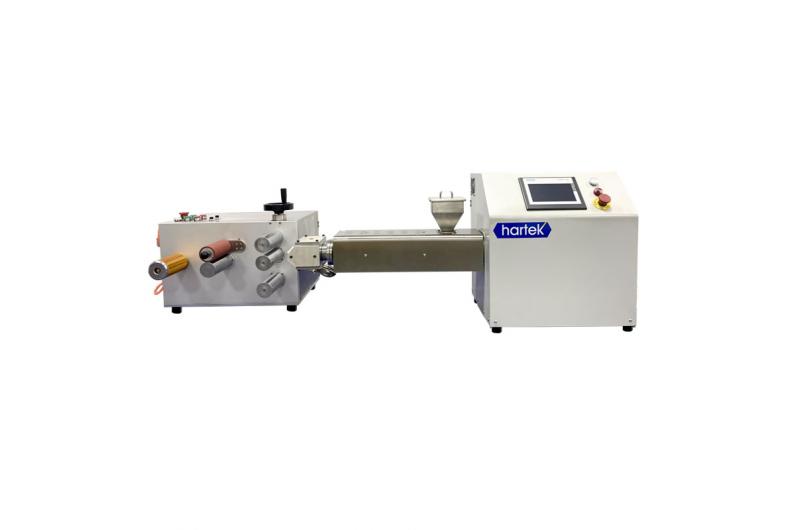

The desktop cast film / sheet extrusion line is composed of single screw extruder, T- die ,cast film auxiliary machine. It is applied to the extrusion molding of plastic films. It is an ideal tool for research institute cause of it’s miniaturization, intelligence and high precision.
* Adopting international brand motor for the extruder to make the plasticization stable and constant.
* Using brand melt pressure and temperature sensor to ensure high accurate data.
* Adopting SIEMENS TFT touch screen and SIEMENS PLC control system, which are highly intelligent and easy to operate
* Double safety protection of machinery and electrical appliances
* Prescription Storage
The test video please click: Desktop sheet extrusion line
Technical Data
Item No.
MP19
Screw Diameter
19mm
L/D
25/1
Motor power
1.5kW
Output
0.2~2kg/h
Calendaring Roll Gap(mm)
0.2~2kg/h
Sheet Thickness(mm)
0.02~0.5
Sheet Width(mm)
≤80mm
Max.Temp.( ℃)
350
Temp.control accuracy( ℃)
±1
Diemension(mm)
1756×651×570mm
