1.Product brief introduction

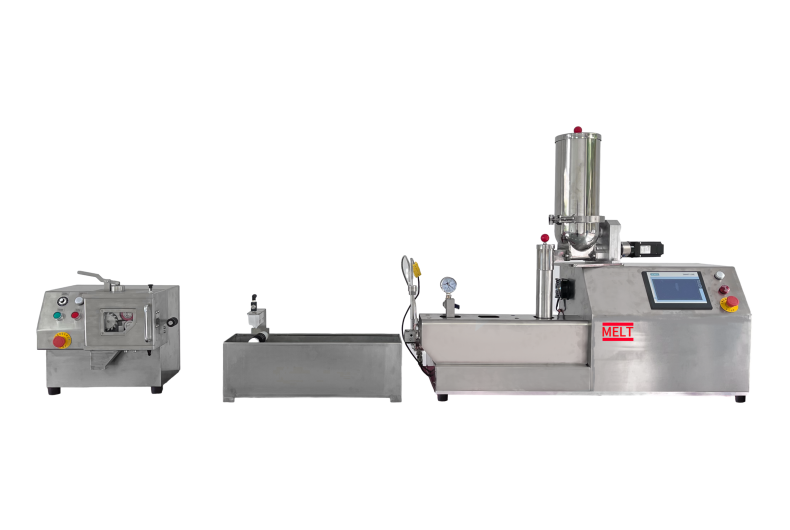

HTGD-12 twin screw lab hot melt extrusion line is mainly for mixing and compounding in polymer processing and has expanded into other applications for new material development. It opens up many possibilities for your R&D and manufacturing environment, promoting fast and reliable material development in the polymer, food, or pharma industries. It is a highly modular, flexible extrusion system and it’ s an ideal instrument for testing on a laboratory scale, Its modular design enables the optimal adjustment of the screws to match the application and product needs. All product contact parts are made from stainless steel, harmless to human.

2. Application Areas

2.1 New Product Development and Formula Optimization

2.2 Quality Testing and Control

3. Main Functions & Features

3.1 Closely intermeshing screw profile, very easy to clean.

3.2 Modular building-block system for screw elements.

3.3 Each barrel has one temperature zone for optimal processing.

3.4 Special mixing and shearing elements with varying effects for high process flexibility.

3.5 Motor, gearbox, and processing section are mounted on the same base frame.

3.6 User-friendly PLC control panel.

Technical data of Lab Hot Melt Extrusion Line（11mm）:
