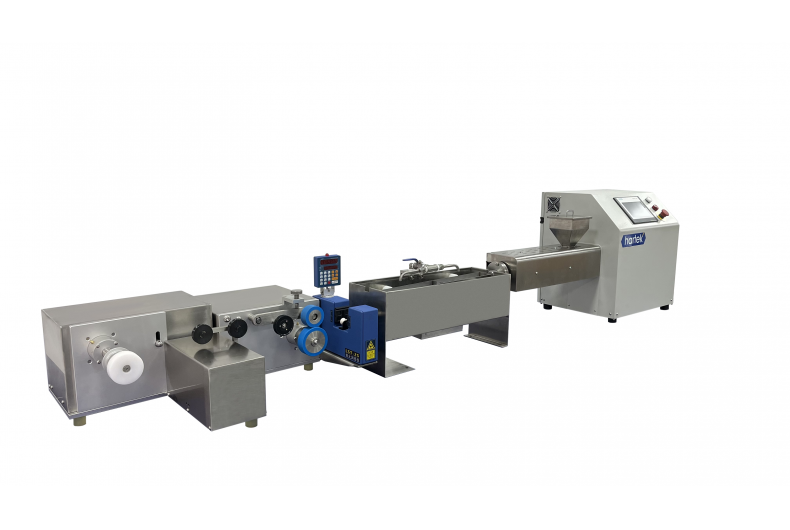

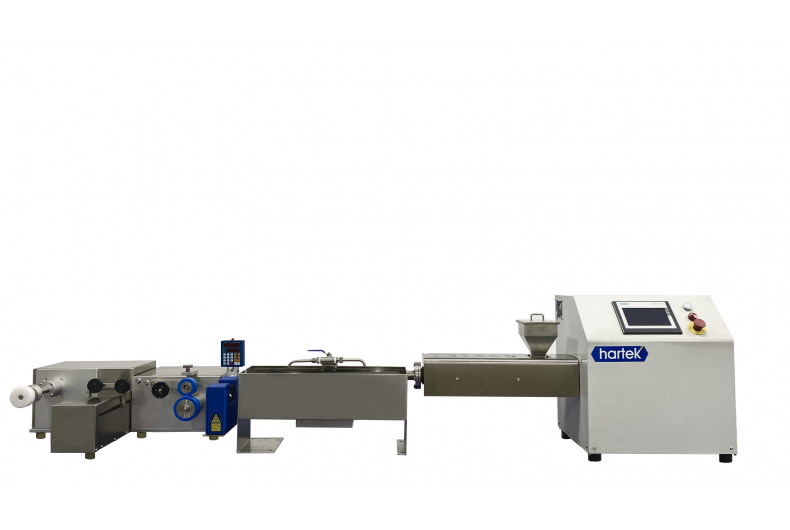

The desktop filament/tube extrusion line is composed of a single screw extruder, water tank, traction machine, winding machine, and diameter measuring instrument. It is applied to the pelletizing of plastics. It is an ideal tool for research institutes because of its miniaturization, intelligence, and high precision.
Product Performance of the desktop filament extruder:
Item No.
MP19
Screw Diameter
19mm
L/D
25/1
Motor power
1.5kW
Output
0.2~2kg/h
Filament diameter
0.2-2mm(filament), 0.6-2mm(pipe)
Max. Temp. (℃)
350
Temp. control accuracy (℃)
±1
Dimension(mm)
2560×557×570mm
Desktop Tube Extruder
Miniature Filament Production Line
High Precision Tube Extrusion
Laboratory Grade Tube Machinery
Plastic Filament Extrusion
Intelligent Control Extrusion System
Single Screw Extrusion Technology
Lab Extrusion Equipment
*Adopting an international brand motor for the extruder to make the plasticization stable and constant.
*Using a brand melt pressure and temperature sensor to ensure highly accurate data.
*Adopting SIEMENS TFT touch screen and SIEMENS PLC control system, which are highly intelligent and easy to operate.
*Double safety protection of machinery and electrical appliances.
